Fairfax water boiler (Lochinvar)

We did a job on Fairfax, in Cleveland Heights, where we put in around 10 rooms of radiant floor heat. This is the water boiler installation that supports that radiant heat. The rest of the house is steam heated.

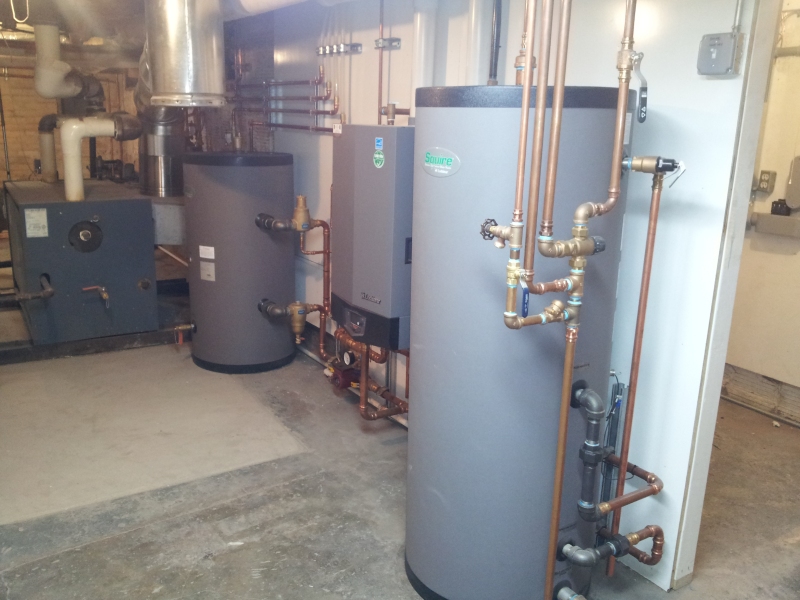

Side view of the system showing water heater, boiler and buffer tank.

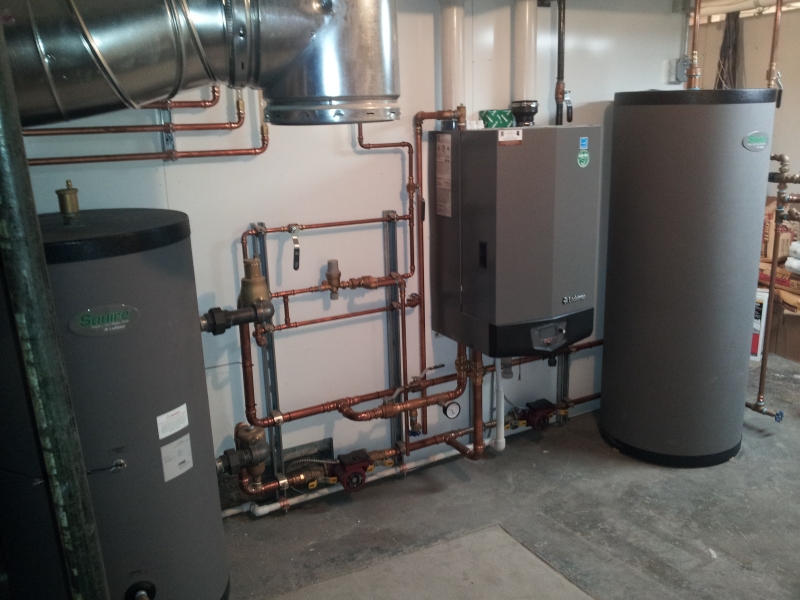

Another system view.

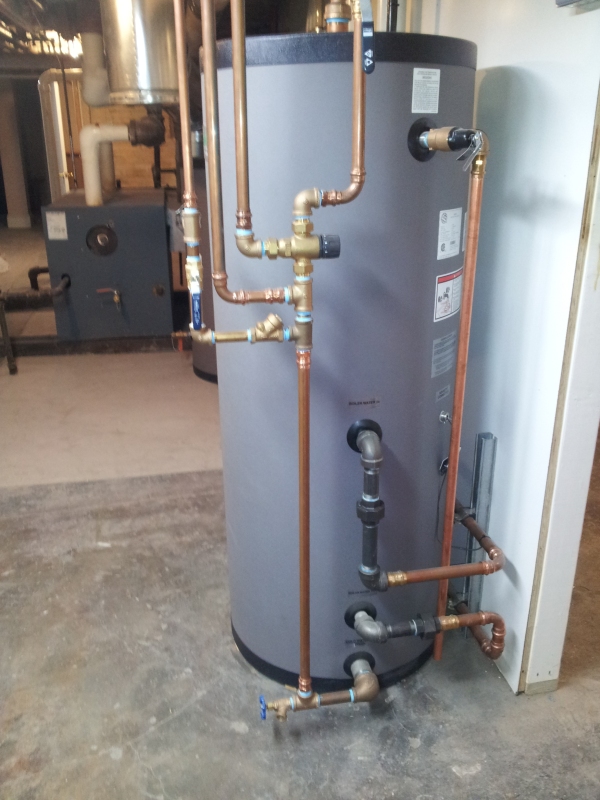

Domestic water heater, heated by the water boiler.

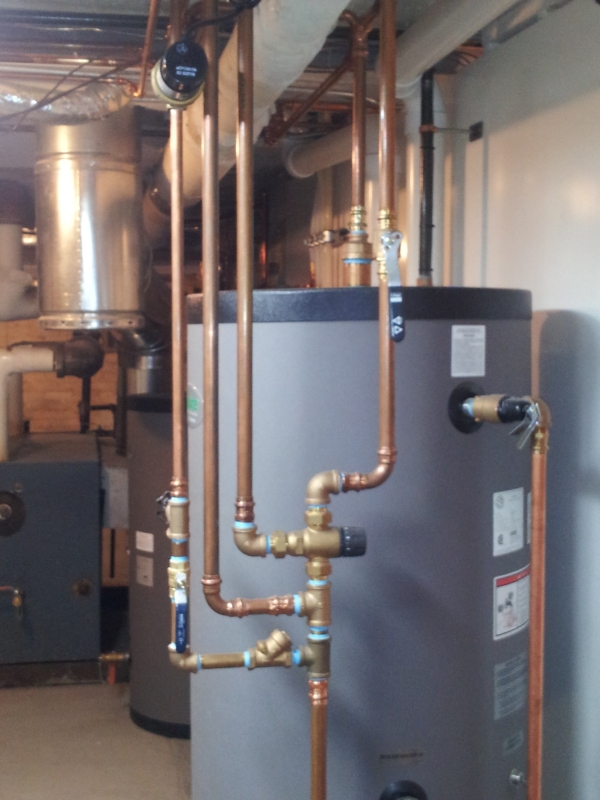

Close up of water heater tempering station.

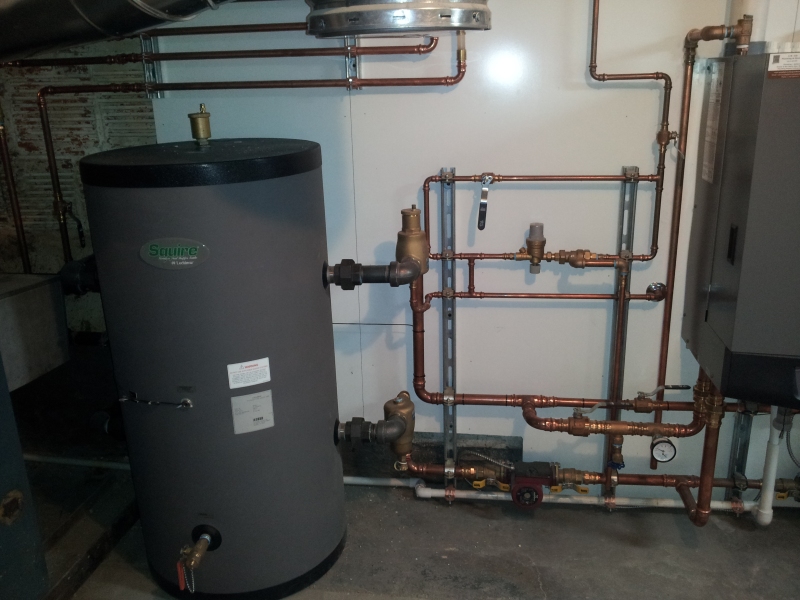

Buffer tank to give the boiler something to 'chew on'.

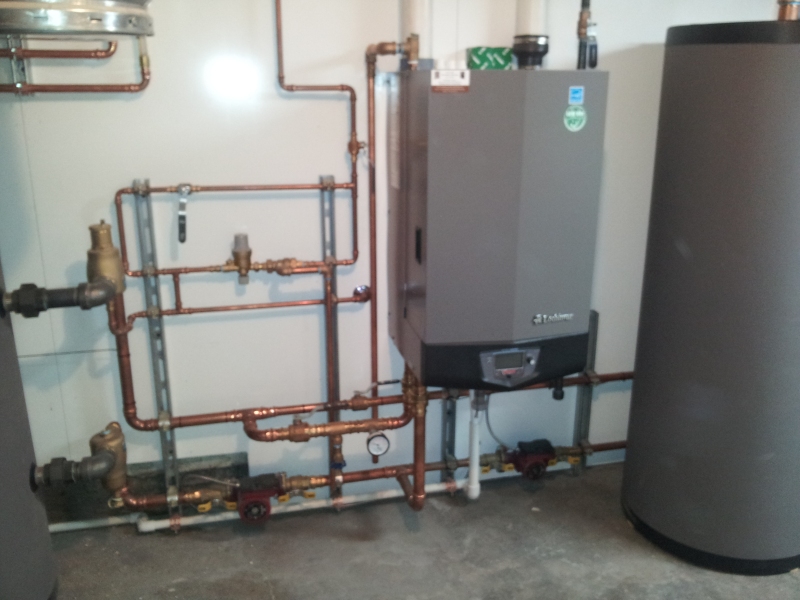

Lochinvar Knight fire tube boiler.

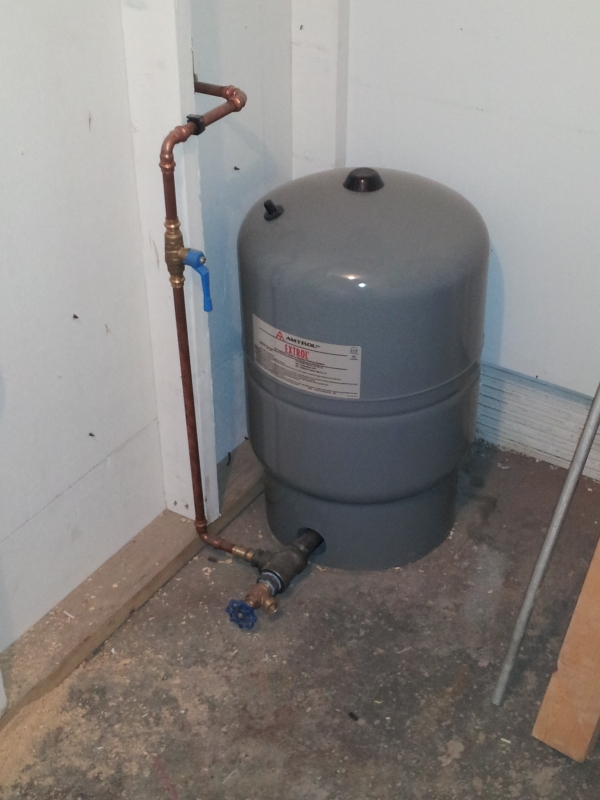

Expansion tank.

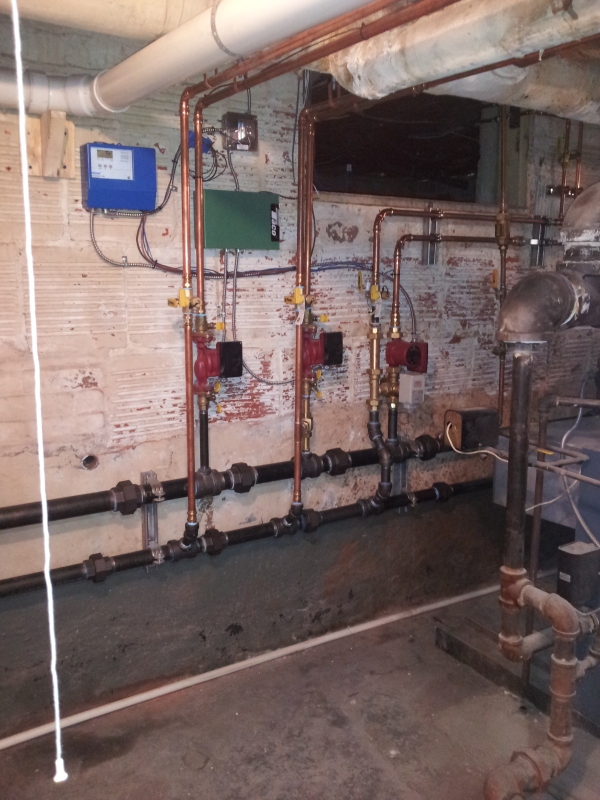

Zone pumps that feed upstairs.

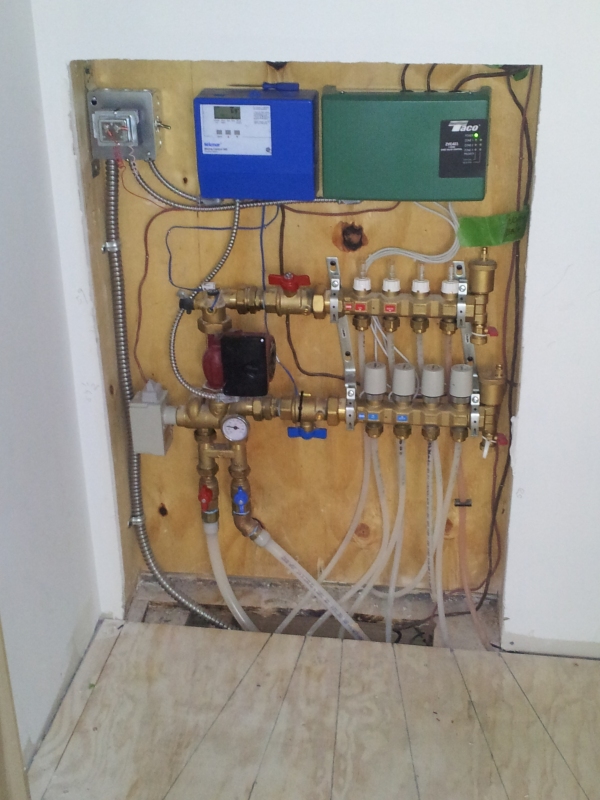

One of several manifold stations.
