Euclid Hts. Blvd. Trinity Install

This house had an old gravity hot water boiler. We installed radiant heat in two bathrooms so pumps were going to have to be added to the system. The homeowners decided that since they had to install pumps they would have us replace the old boiler with a high efficiency mod/con boiler. We also installed an indirect water heater for the domestic usage.

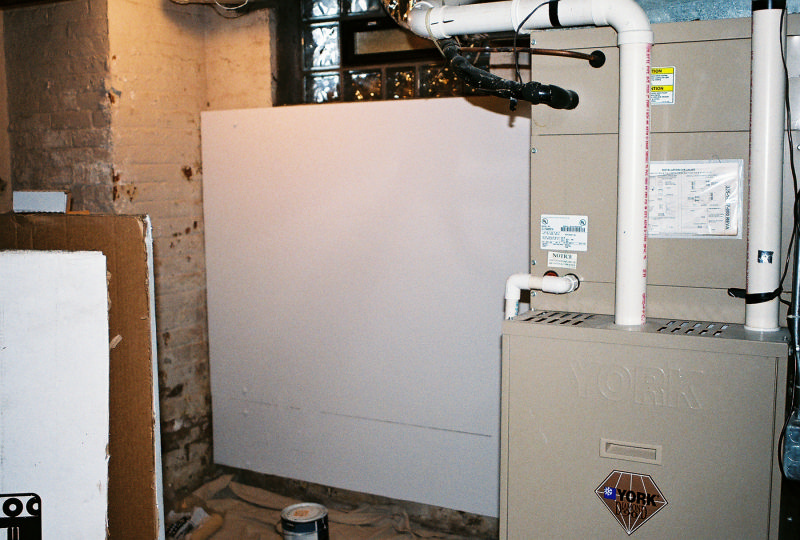

Blank boiler side plywood being painted.

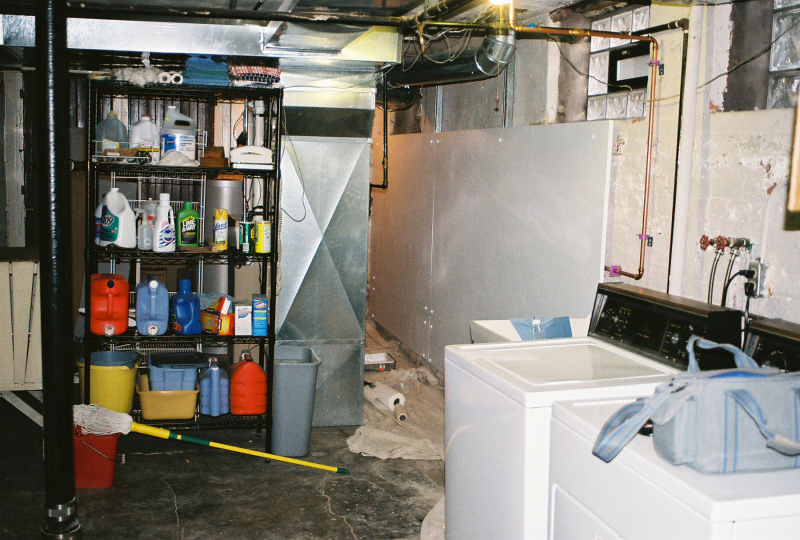

Blank plywood installed on wall. This is where the pumps will be installed.

System side of the buffer tank.

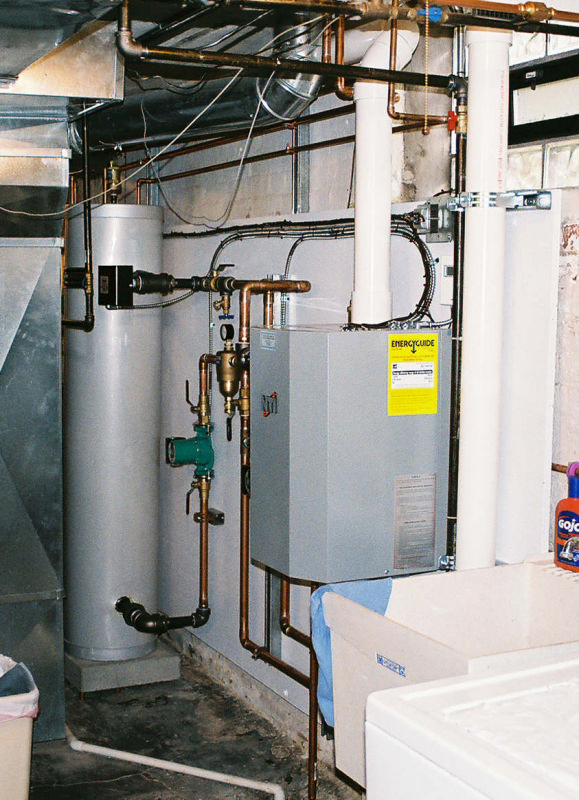

Better view of the buffer tank tucked behind the air handler.

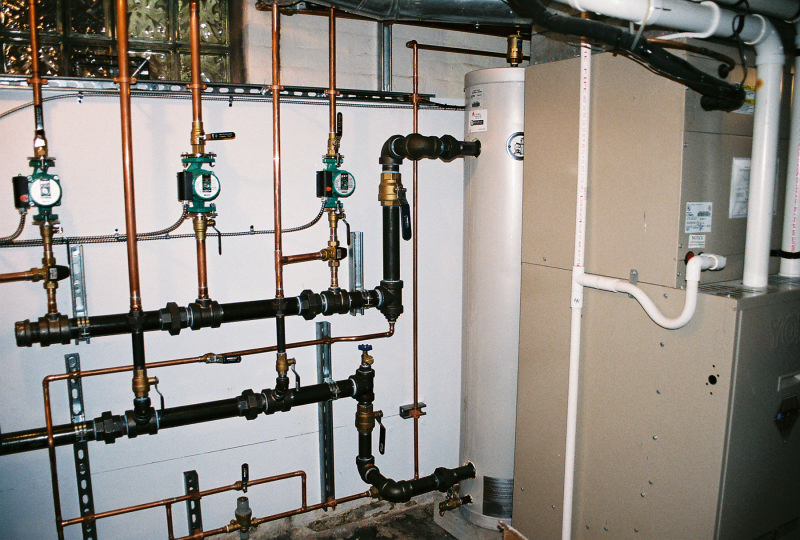

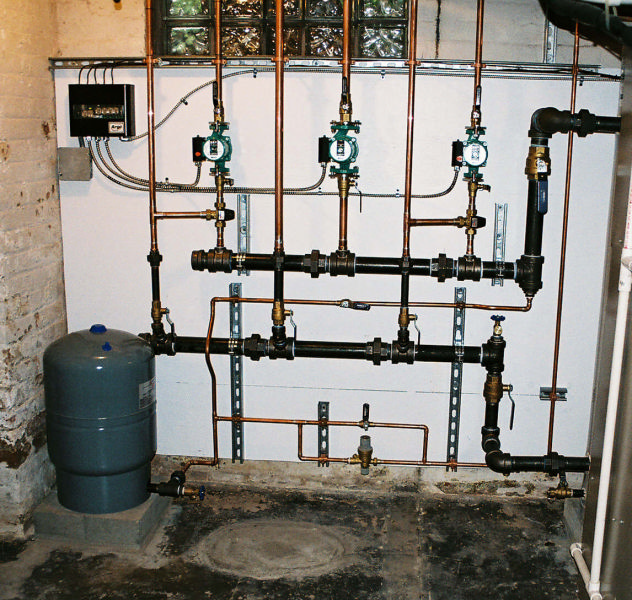

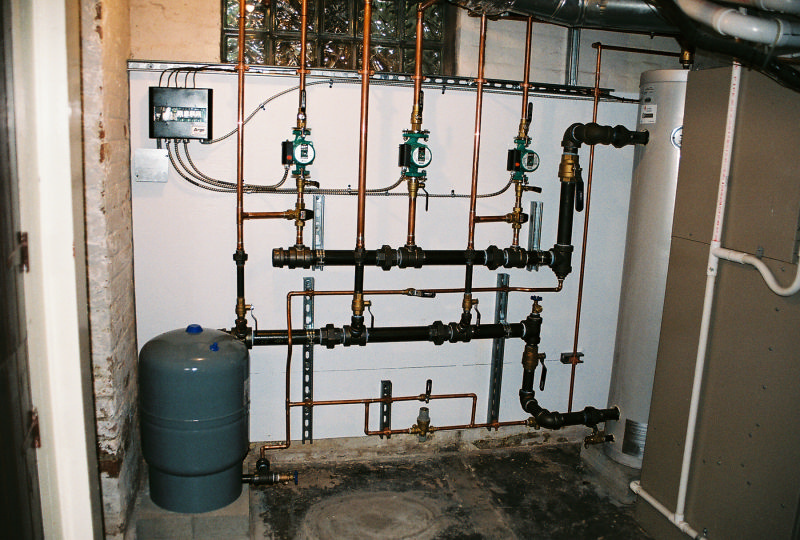

View of the pumps and control box.

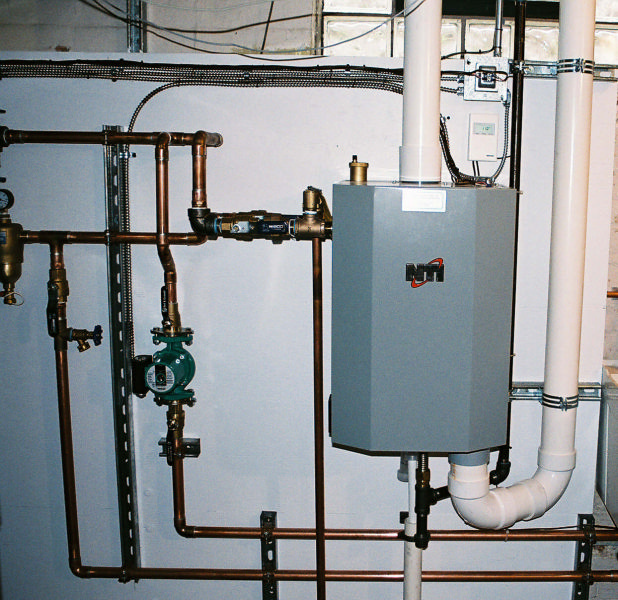

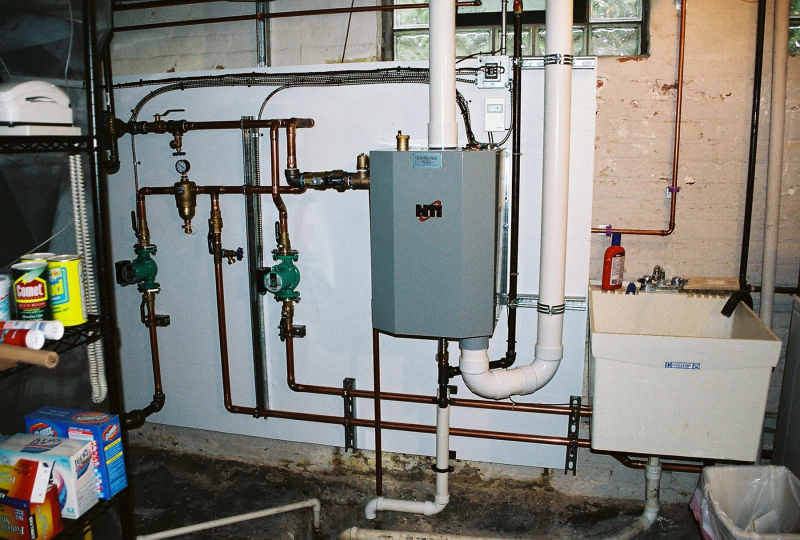

The trinity boiler installed.

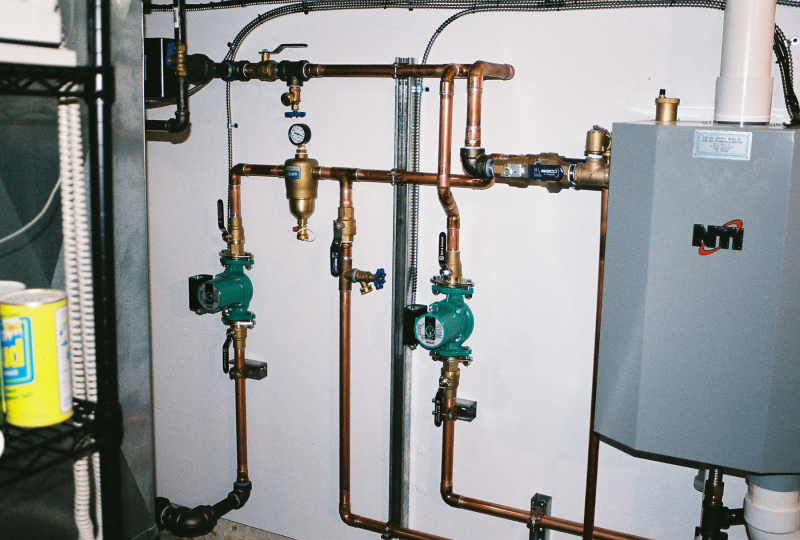

The boiler pump and the water heater pump.

Side view of the boiler side of the buffer tank.

Better boiler side view.

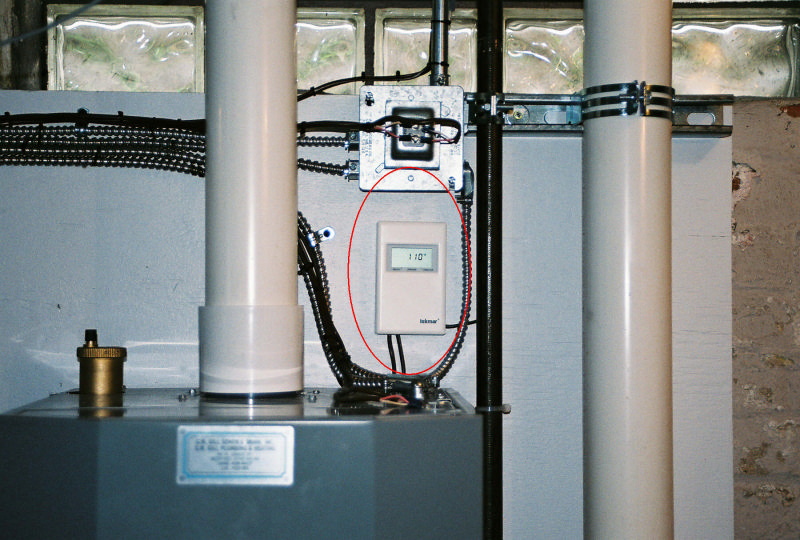

Tekmar control that governs the water heater.

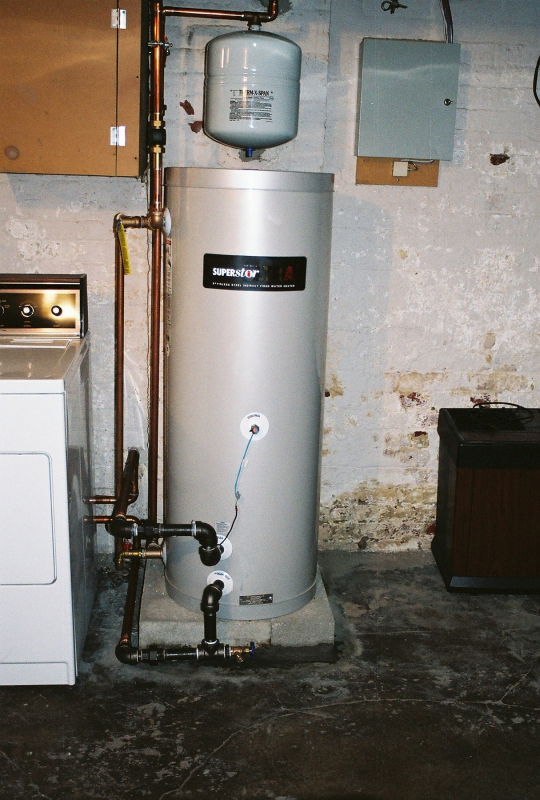

Indirect water heater, 40 gallons.

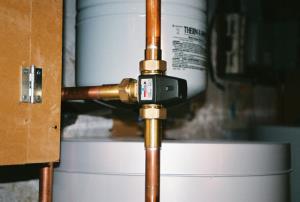

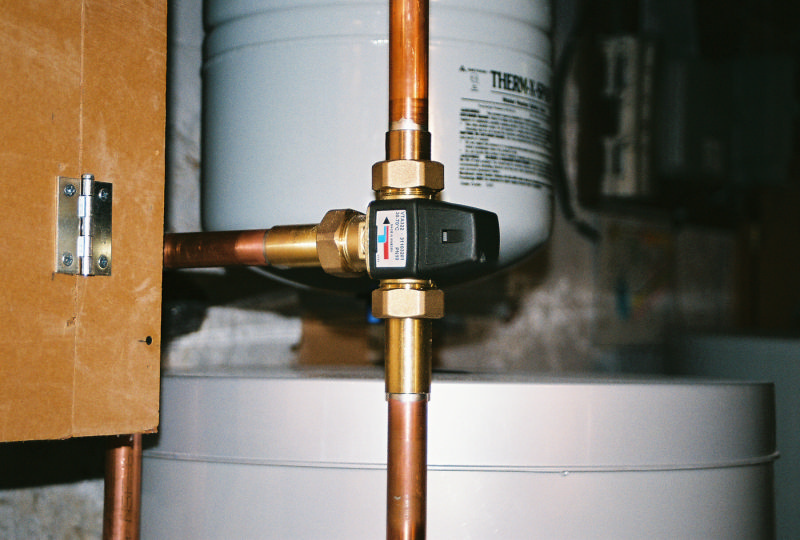

Tempering valve on water heater outlet.

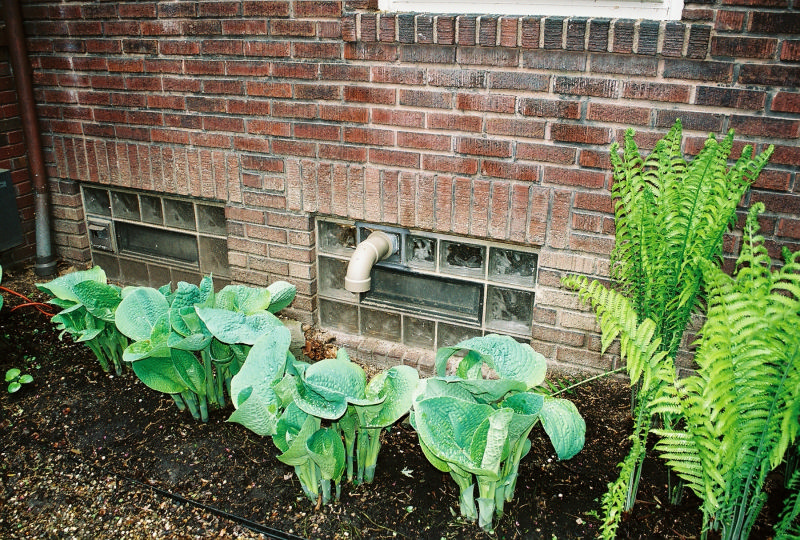

Air intake for the boiler.
